Mechanical files are stored in the repository for baseplates, covers, and camera-related parts.

Available Files

Part Repository path
Top cover WILD_TopCover.STL
Baseplate WILD_Baseplate.STL
Camera baseplate WILD_Baseplate_Camera.STL
Mouse-case CAD source Wild_Case.SLDPRT and WILD_Case.f3d
Cambridge NeuroTech probe assembly WILDAssemblyVertical.stp, WILDAssemblyVertical.f3d, and printable support parts in 3Dprint/CambridgeNT_Probe/

Rendered Model Views

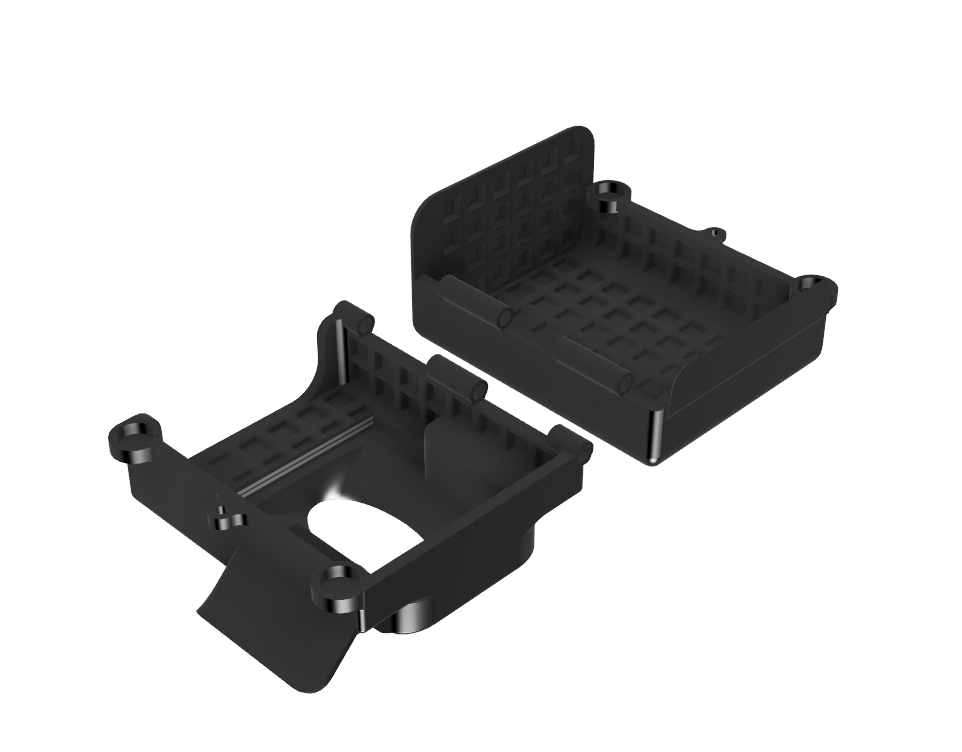

Rendered WILD mouse case model with baseplate and cover
Mouse-case render showing the baseplate and cover geometry for device protection and mounting.

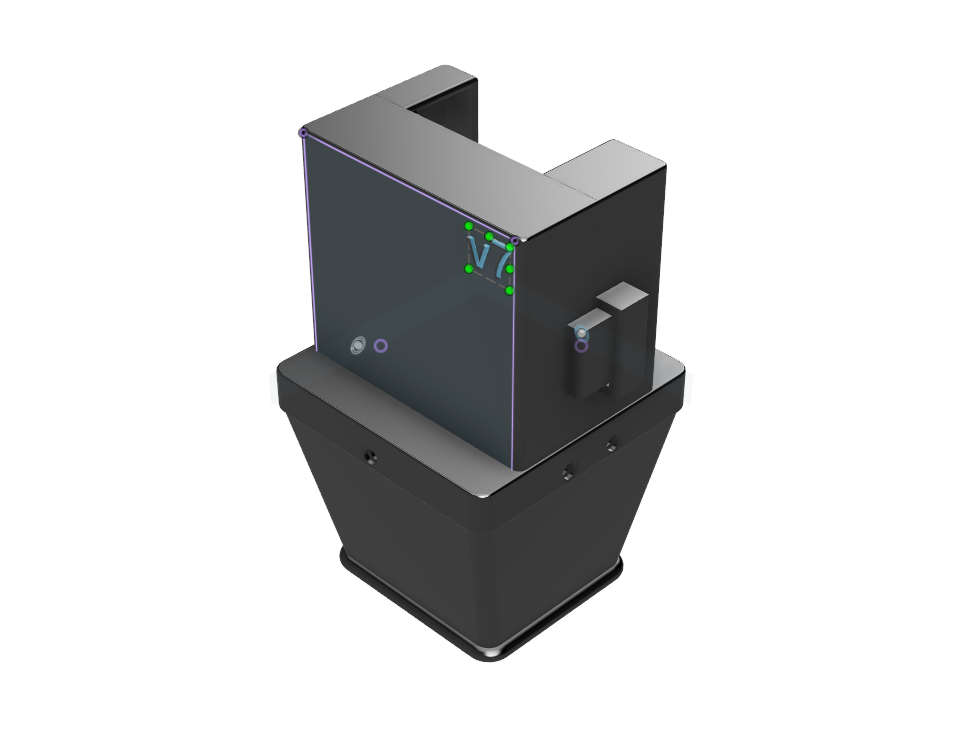

Rendered vertical WILD assembly for Cambridge NeuroTech probe workflow
Vertical assembly render for the Cambridge NeuroTech probe workflow, useful for checking model orientation and enclosure clearance.

Design Considerations

  • Keep cable strain relief and connector access visible in photos.
  • Document orientation of the baseplate relative to probes, stimulation leads, and camera modules.
  • Include printing material, layer height, support recommendations, and post-processing steps.
  • Add animal-specific mounting notes only after local approval and protocol review.
